Manufacturer: The Modern Fan Co
Collection: Ceiling Fans
Designer: Guto Indio da Costa

• 6-speed, reversible DC motor
• Die cast aluminum construction
• 56” span, injection-molded ABS blades (solid color or surface printed woodgrain)
• Includes 8” and 18” down rods
• Optional LED light: 20W, 90 CRI, 3000K, 1800 lumens (dimmable) behind opal glass diffuser; adds .5” to length of fan; CA Title 24 (JA8) compliant
• Slope compatible up to 20°; adapter available for slopes up to 45°
• ETL listed for dry and damp locations
• Weight: 15 lbs (6.8 kgs)

DIMENSIONS:

PERFORMANCE DATA:

High Speed Performance Data: Based on DOE standardized test method (installed with 8″ down rod).

RPM: 170
CFM (Cubic Feet per Minute): 5,705
Watts (fan only): 28.17
CFM/Watt: 203

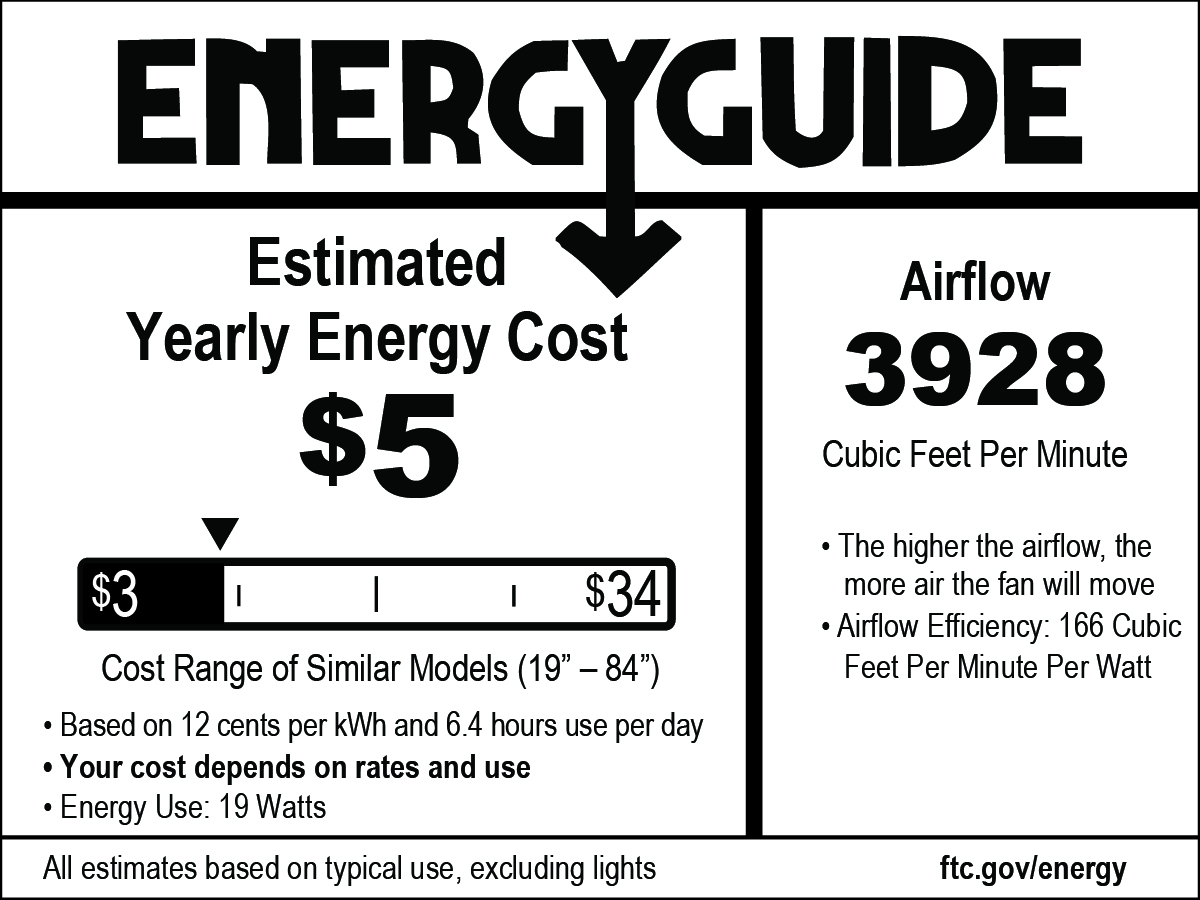

Energy Guide Data: Representing weighted averages of high speed and low speed performance based on DOE/FTC standardized reporting criteria. Assumes typical use (excluding light).

Average Energy Use: 19 Watts
Average Airflow: 3,928 CFM
Yearly Energy Cost: $5.00
Average Efficiency: 166 CFM/Watt

Ceiling fan manufacturers are required by federal law to publish an EnergyGuide label for all models in a standardized format, including watts used, cubic feet of air moved per minute (CFM), a resulting CFM per watt efficiency value and an estimated annual cost to use the product. These values are “weighted averages” of high and low speed performance and are intended to represent typical use. They are based on results from a standardized test gathered in a controlled environment and are furnished to help consumers and specifiers compare products. Because the standardized test method and the EnergyGuide format has changed over the years (with significant impacts on resulting data), be sure to only compare information which has been published based on current test methods and EnergyGuide label format. Many websites continue to provide “high speed” performance data instead of the more current “weighted averages”, making for large discrepancies. Please contact our customer support team with questions about performance data.

It is also important to recognize that in a real world installation, there are a number of variables that can affect air movement patterns and volume, including ceiling height, down rod length, room size/layout, furnishings and airflow direction. It can be challenging to rely on the reported EnergyGuide information alone to determine how the airflow might feel in a given application. Nevertheless, our EnergyGuide data shows that all Modern Fan products perform at the upper range of fans on the market.

Furthermore, while DC motor fans are reaching new levels of efficiency, it’s important to remember that all ceiling fans (AC or DC motors) are inherently efficient and use very little electricity to begin with, especially when used to offset or reduce use of air conditioning.
